Product details

Sale  /Optical communication/Sampling oscilloscope/Precision Timebase Reference Module

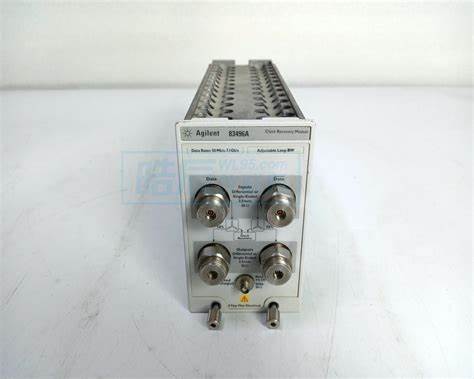

SaleAgilent 83496A Optical / Electrical clock recovery module

Views：202

Product parameters

Option Calibrated Delivery cycle Warranty Condition
No -- 90days 80% new
Location Serial Number State Data download
- Intact
Budget Price： TEL

E-mail

Collection

Shopping
Update date：2024-09-18
Contact phone：+86-755-86016691

*Product description

The 83496A multi-rate electrical Clock Recovery (CR) module performs clock extraction for waveform analysis with continuous, unbanded tuning from 50 Mb/s to 13.5 Gb/s, ultra-low residual jitter and Golden Phase Locked Loop (PLL) operation. It provides the first true hardware Golden PLL triggering system because the loop bandwidth can be tuned to the precise values called out in standards for data rates within its operating range.

More>>

Detailed information

Key Features & Specifications

Optical clock recovery (option 101 only)

  • Inputs & outputs: 9/125 µm (single-mode) to 62.5/125 µm (multimode)
  • Wavelength range: 1250-1650 nm (single-mode), 750-1330 nm (multimode)
  • Minimum optical modulation amplitude: -11 dBm (1310/1550 single-mode), -10 dBm (1310 multimode), -8 dBm (850 multimode)

Electrical clock recovery (option 100 only)

  • Inputs: single-ended or differential, 3.5 mm (m) connectors
  • Outputs (option 100 only): single-ended or differential, 3.5 mm (m) connectors
  • Minimum electrical input level: 75 mVpp

Continuous unbanded tuning from 50 Mb/s up to 13.5 Gb/s

  • Golden PLL operation (with option 300) with a tunable loop bandwidth from 15 KHz to 10 MHz
  • Ultra low residual jitter: < 300 fs rms (characteristic at 10 Gb/s)

Compatibility

  • 86100A/B Infiniium DCA Mainframes
  • 86100C Infiniium DCA-J Mainframe
  • 86100D Infiniium DCA-X Mainframe

More>>
